Beschreibung

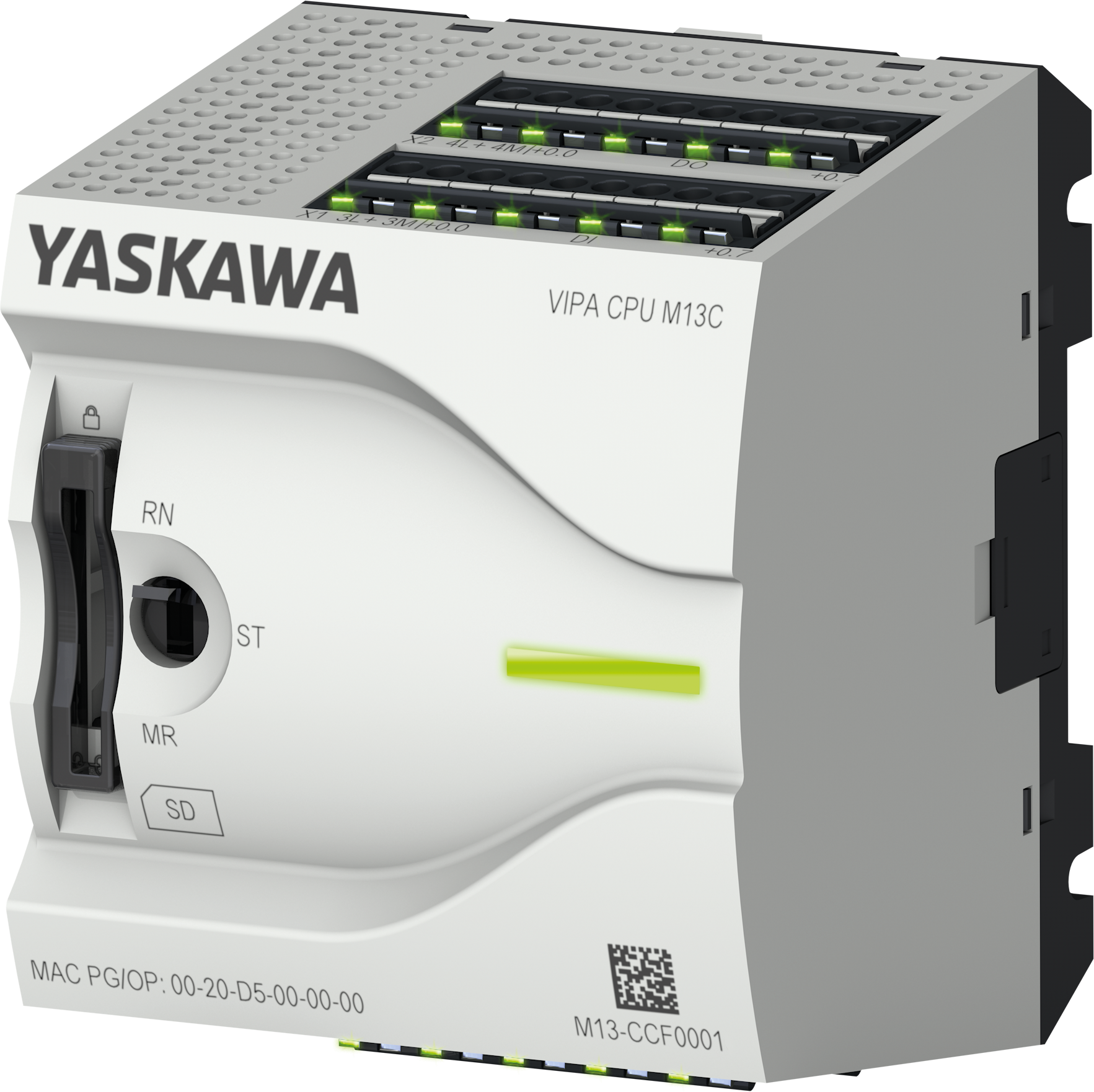

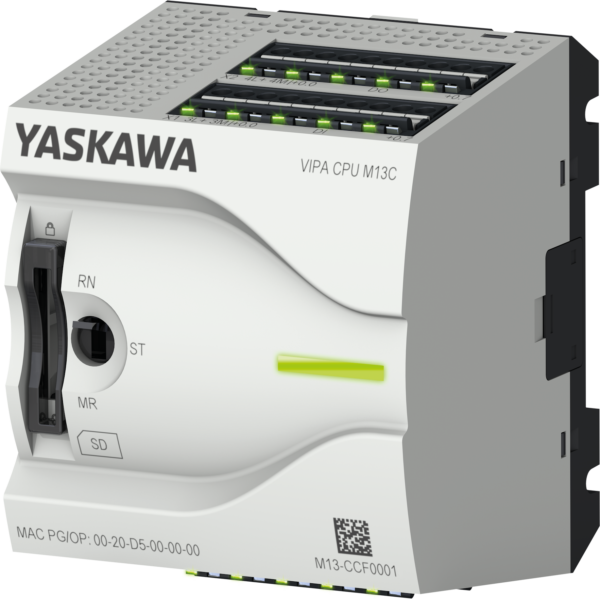

CPU M13C, Powered by SPEED7, Work memory [KB]: 128 , Integrated PROFINET controller (limited to 8 Devices) / I-Device
Onboard: 16x DI / 12x DO / 2x AI [configurable: voltage 0…10 V and/or current 4…20mA] / 4x Counter / 2x [PWM/Pulse Train]
Interface [1x RJ45]: PROFINET, ModbusTCP master/slave, openCommunication, Interface [1x RJ45]: active Ethernet PG/OP communication with DHCP support, switch
Optional: [2x RS485]: MPI, PROFIBUS slave, PtP: ASCII, STX/ETX, 3964 (R), USS master, Modbus master/slave
OPC UA / Web server
SD card slot with locking, up to 8 expansion modules, configurable via SPEED7 Studio, SIMATIC Manager and TIA Portal
